Mini Speaker

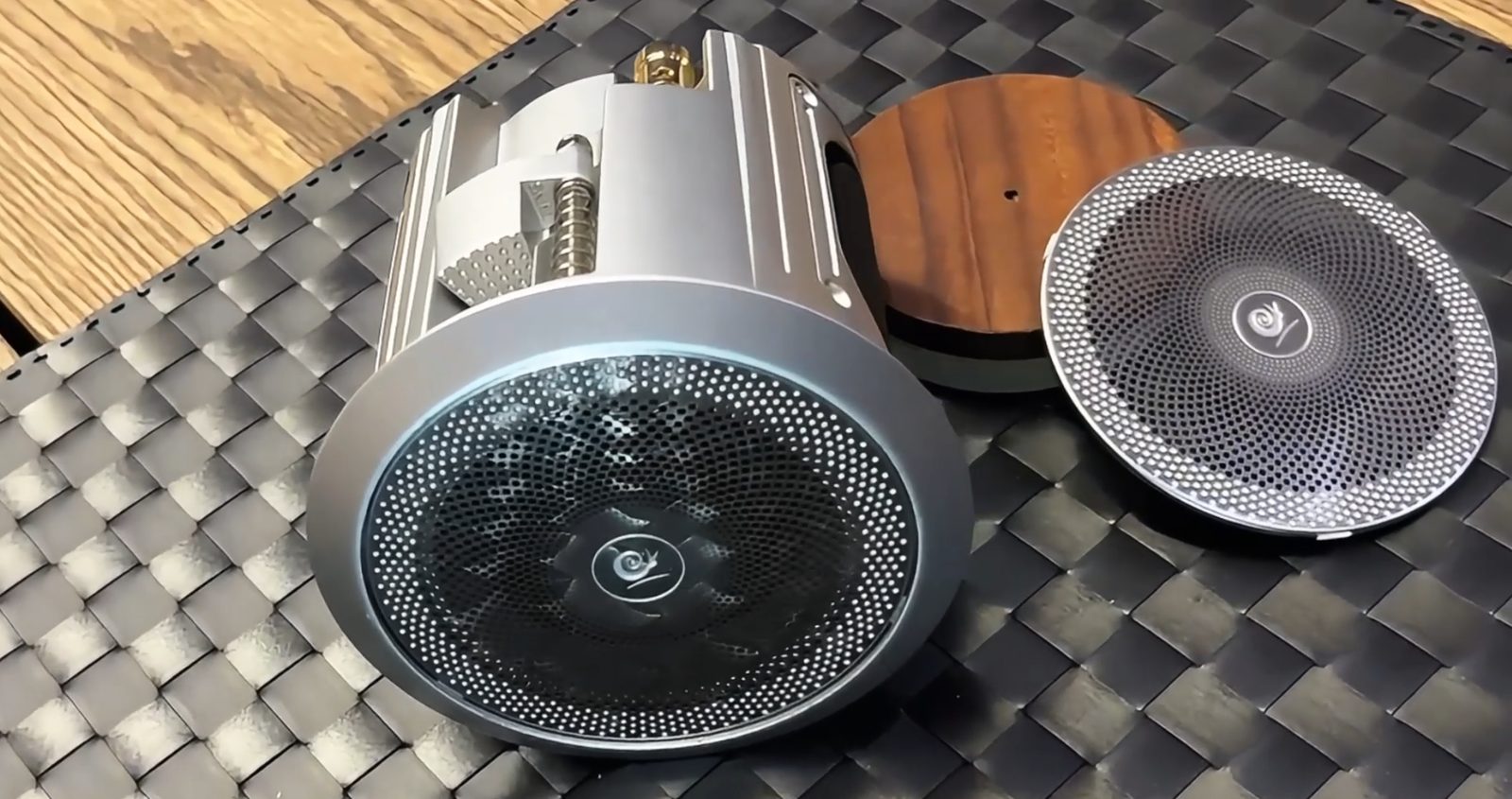

MINI Waveguide Invisible Speaker

Product Features:

• A modern living-room cinema speaker designed for the home;

• Patented variable waveguide technology lets sound turn corners for immersive, wraparound envelopment;

• The MINI speaker uses a 2.5-inch high-fidelity two-way coaxial driver, 160W of high power and a dual passive radiator design;

• Fully sealed main and surround cabinets for clearer sound, richer layering and more detail;

• Small size, big energy, excellent sound quality and a low price: easy to install and hugely popular with consumers;

• The size of a downlight, it fits flush into the ceiling without spoiling the decor - you hear it, but you never see it;

• All materials meet RoHS standards.

Specifications
Driver:	1×2.5-inch high-fidelity two-way coaxial driver
Frequency Response:	50Hz~20KHz
Power:	20~160W
Sensitivity:	86dB
Max SPL:	111dB
Impedance:	8 ohms
Enclosure:	Sealed
Dimensions:	Ø91*82mm
Cut-out Dimensions:	Ø80~85mm, depth >80mm
Net Weight:	0.4KG
