Product Features
◆ have adjustable transmit power and adjustable squelch threshold, the panel for an external receiver squelch control
knob, the flexibility to set effective operating radius between 10 m -80 m needed.
◆ have infrared automatic frequency function enables the microphone to the receiver work fast synchronization channel.
◆ pilot with analog functions, can effectively solve the false receiver noise.

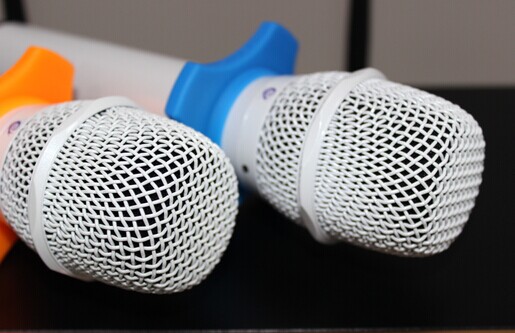

◆ KTV project specific models, two microphones, a host. Easily configured over 100 KTV, unique product design,
maintenance quick and easy.
Technical specifications
Frequency range 740-790MHz
Adjustable number of channels: 100 × 2
Oscillation mode: PLL Frequency Synthesizer (PLL)
Frequency stability: ± 10ppm
Receive mode: dual conversion superheterodyne receiver
Sensitivity: -95 ~-67dBm
Audio Frequency Response :40-18000Hz
Harmonic distortion ≤ 0.5%
SNR: ≥ 110dB
Audio output: Balanced output and mixed output
transmit power :3-30MW
Modulation: Frequency Modulation (FM)
Battery: 2 AA batteries
Power Specifications :100-240V 50-60Hz 12VDC (switching power adapter) or 220VAC/50-60HZ 12VDC
Power consumption: ≤ 10W
